ASY Electronics

ASY Electronics
ASY Electronics is a high-tech enterprise dedicated to building smart
factories of the future. With a core mission of creating efficient,
reliable, and green smart factories, the company leverages its key
capabilities in "data sensing" and "intelligent connectivity." Through
self-developed edge-layer hardware products and industrial data
integration solutions, it provides manufacturing enterprises with
comprehensive solutions for equipment condition monitoring, refined
energy management, and production process optimization, helping
businesses develop efficient, reliable, and sustainable digital
productivity. The company's main products include broadband power
line carriers, wireless temperature monitoring systems, transmitters,
flow meters, and automatic door controllers, which are widely used
across various industrial sectors.

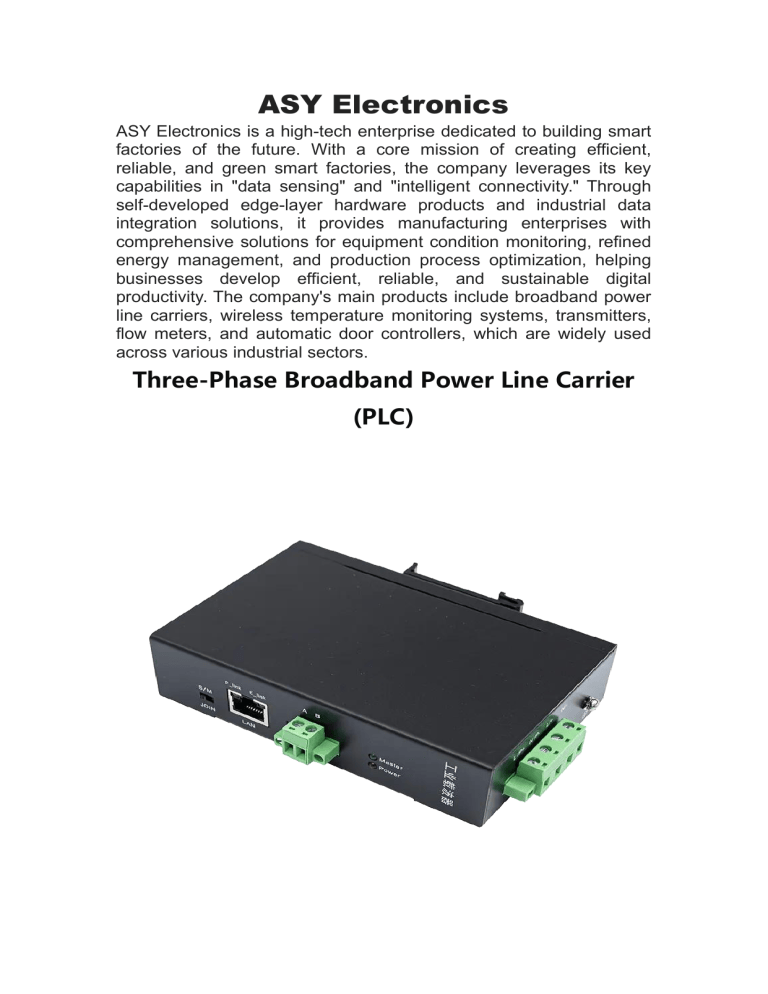

Three-Phase Broadband Power Line Carrier
(PLC)
High Definition- Power Line Communication KS910L，is an industrial-grade
bandwidth power line carrier communication device based on IEEE P1901,
adopting OFDM modulation and demodulation technology and conforming to
the European Union EN-50561 standard specification.PLC uses the existing
power line or slip contact core as the information transmission medium for
high-speed long-distance data transmission, featuring high communication
rate, bidirectional transparent transmission, good transmission stability,
scalability and strong anti-interference.
HD-PLC KS910L is self-contained routing algorithm，automatic networking，
built-in LDPC error correction codec，AES-128 bit encryption algorithm，fully
transparent dissemination of data.Hundred megabit bandwidth with
10Mbps/100Mbps communication rate adaptive bandwidth.Long transmission
distance, power line point-to-point transmission distance up to 500 metre,
coaxial cable transmission distance up to two or three kilometre.Networking
mode supports bus, star, tree, and hybrid network topologies, hot-swappable,
plug-and-play.
The KS910L is available in several versions for different applications，
hardware versions include standard version, high-bandwidth version,
long-distance version, and broadcast versions, and software versions include
high-performance version, relay version, and specialised versions for slid
contact cord.With independent dual-channel data interface, support network
port and serial RS485 data at the same time on the power line carrier
communication.
HD-PLC KS910L conforms to industrial grade standards，guide rail mounting
method.Supports carrier communication on AC 85-500V or DC 100-700V
power lines or slip contact cord，simultaneously picking up power on the power
lines，no separate power supply required.Full utilisation of existing power line
network，no rewiring required，optimise cumbersome cabling for network
networking to the maximum extent possible.The products have been widely
used in various industries, including intelligent warehousing, three-dimensional
parking garage, logistics sorting system, intelligent overhead crane, inspection
robot, new energy power exchange, automation control and PLC control
system and so on.
General Gigabit Power Line Communication
Broadband Carrier KS1200G is a Gigabit bandwidth Power Carrier
communication device based on IEEEP1901 and adopts OFDM modulation
and demodulation technology, which conforms to the European Union
EN-50561 standard specification. Broadband Power Carrier (HD-PLC)
communication refers to the high-speed transmission of data through the
existing power lines as the information transmission medium. Compared with
the traditional narrow-band power line carrier communication, the advantages
of broadband carrier are high communication rate, two-way real-time
transmission, strong anti-interference, good stability and scalability.
Wideband Carrier KS1200G carrier rate physical layer bandwidth up to
1000Mbps, compliant with HomePlugAV and HomePlugAV2 standards,
supports Ethernet data communication via power line carrier, built-in
algorithms, no need to set up the master-slave, self-routing, automatic
networking. Flexible and diversified networking methods, supporting bus, star,
tree, and hybrid network topologies. Built-in AES-128bit encryption algorithm,
fully transmissible, plug and play.
The power supply range of the carrier KS1200G is DC12-48V, and the PLC
communication voltage is suitable for power line carrier communication up to
380V AC or 560V DC, and the PLC channel port does not distinguish between
phase sequence or positive and negative poles.
Broadband carrier KS1200G industrial grade standard, ultra-small size, length,
width and height of about 90x35x130mm, suitable for harsh environments,
industrial communication scenarios, including underwater robots, mines,
oilfields, warehousing, logistics, sorting, three-dimensional parking garages,
railroads and subway communications, industrial automation equipment, etc.,
through the existing power lines or cables for bi-directional, real-time,
high-speed, long-distance data Transmission.
Contact Information:
Tel:+86-18157343325
Email: [email protected] / [email protected]
Add: Room 302, Building 11, No. 79 Jinsui Road, Chengnan Street, Nanhu
District, Jiaxing City, Zhejiang Province
Website：https://www.asyjx.com
